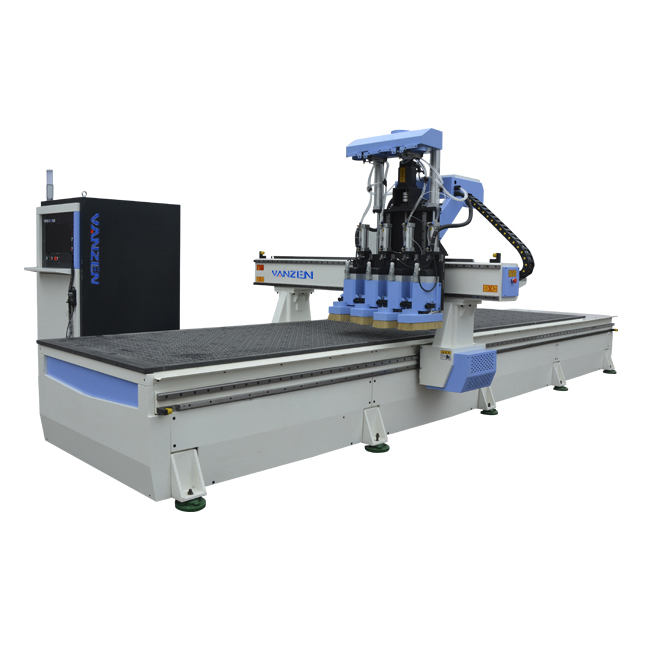

Model

OCEAN K4

Machining Area

1300*2500mm (Optional 1600x3200mm/2000x3000mm)

Z axis travel

200mm

Running Speed

50m/min

Spindle Motor

4 Sets of 6 kw spindle

Control System

NC STUDIO controller

Driving System

Chinese servo motor and driver

Reducer

Good quality reducer

Guide Rail

Taiwan TBI rail (Y axis=30mm, X/Z axis=25mm)

Rack and pinion

Helical rack 2 m with high precision

Ball Screw

Taiwan TBI ball-screw for Z axis transmission

Power Supply

AC380V/3Phase 50HZ/

AC220V/3Phase 60HZ

Inverter

7.5 kw Inverter with good and stable quality

Table

Vacuum working table

Vacuum pump

High quality 5.5 kw vacuum pump

Weight

2200kgs/2500kgs/4000kgs

CNC/components Warranty

Spindle motor is for half a year, others for one year.
