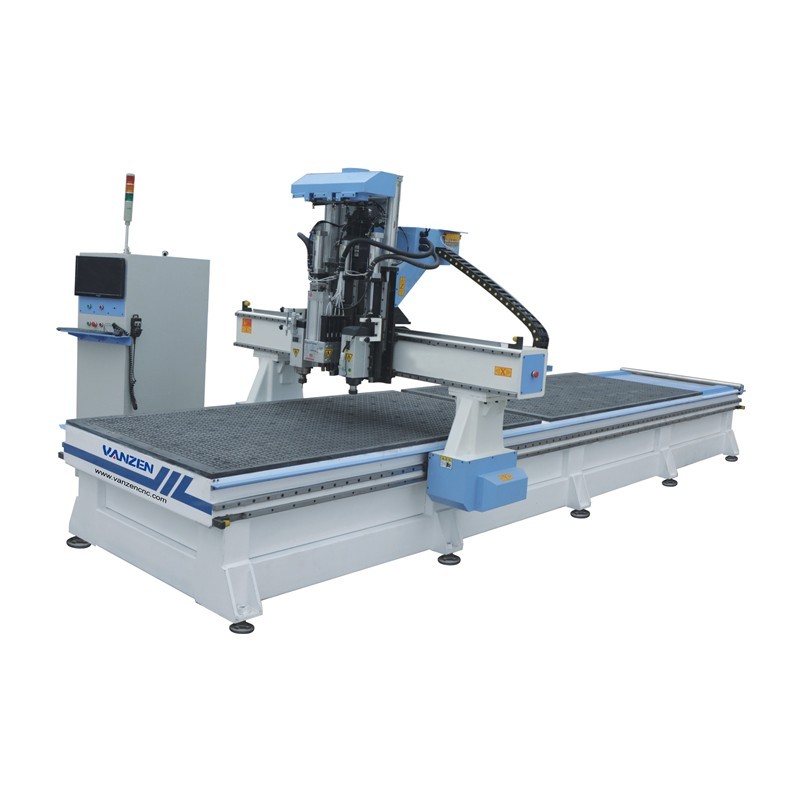

Model                                      K2

Machining Area                      One working station :1300*2500mm

                                                Two working station:1300x5000mm( Optional)

Z axis travel                            200mm

Running Speed                      50m/min

Spindle Motor                         2sets of 6.0kw air cooling spindle

Driving and control system    Syntec drive and control integration system

Guide Rail                              Taiwan TBI rail (Y axis=30mm, X/Z axis=25mm)

Rack and pinion                     Germany HERION helical rack with high precision

Reducer                                 Japanese SHIMPO reducer

Ball Screw                             Taiwan TBI ball-screw for Z axis transmission

Boring Head                          Vertical spindles up to9(4X-5Y)6000rmp

Power Supply                        AC380V/3Phase 50HZ

                                               AC220V/3Phase 60HZ

Inverter                                  11kw Inverter

Electric                                   Schneider electric parts

Table                                      Vacuum working table with two working zone

Vacuum pump                       High quality vacuum pump

Weight                                   2500kgs/4000kgs

CNC/components Warranty Spindle motor is for half a year, others for one year.
